51.2V Low Voltage Stackable Lithium Battery Home Solar Energy Storage Lifepo4 Battery

Contact Now

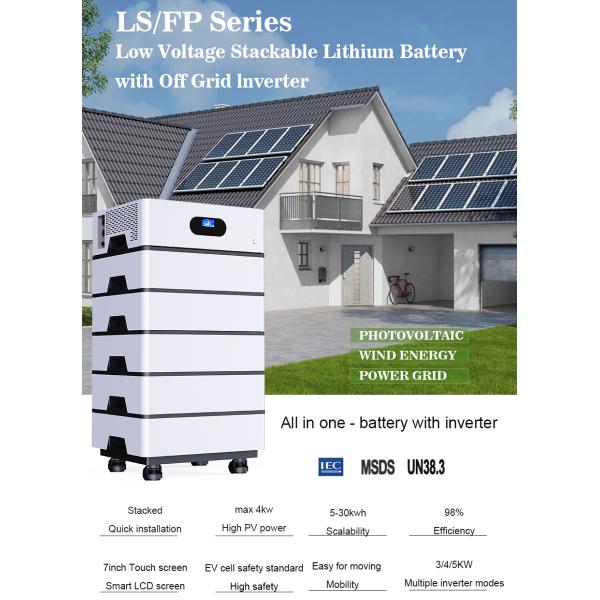

51.2V Low Voltage Stackable Lithium Battery Home Solar Energy Storage Lifepo4 Battery

We can match with different inverters, please contact us for more details

★ A+++ LFP battery and reliable BMS design
★ Modular design allows for flexible expansion up to 30kWh
★ Pulley and rail design ensures quick and easy system installation
★ Built-in MPPT with up to 99% efficiency
★ Low-voltage battery and inverter provide a cost-effective energy storage system
★ Operating temperature range: -10°C to 55°C

System specification
Model	LS51100-FP5	LS51200-FP5	LS51300-FP5	LS51400-FP5	LS51500-FP5	LS51600-FP5
Inverter parameter
PV input power	4000W
PV max charge current	80A
Max PV Voltage	145VDC
MPPT voltage range	64~130VDC
Number of Mppt	1
EPS output power	5000W
EPS output voltage	230VAC
EPS output current	21.7A
EPS output frequency	50/60HZ
EPS Transfer Time	≤ 20ms
Waveform	Pure Sine Wave
AC charge current	60A
Battery parameter
Battery Type	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4
Rated voltage	51.2	51.2	51.2	51.2	51.2	51.2
Rated capacity	100AH	200AH	300AH	400AH	500AH	600AH
Energy(25°C, 0.5C)	5.12kwh	10.24kwh	15.36kwh	20.48kwh	25.6kwh	30.72kwh
Safety standard	IEC62619, UN38.3, MSDS
System parameter
Display	7 inch touch LCD
Operating temperature	-10°C~60°C
Humidity	15%~85%(No condensation)
Size(WDH) mm	600475450	600475635	600470800	600475968	6004701150	6004701302
weight	88kg	136kg	184kg	232kg	280kg	328kg

51.2V Low Voltage Stackable Lithium Battery Home Solar Energy Storage Lifepo4 Battery

Product Tags:

51.2V stackable solar battery

lifepo4 home energy storage

low voltage solar battery system

51.2V Low Voltage Stackable Lithium Battery Home Solar Energy Storage Lifepo4 Battery Images
